Hydraulic Upsetting Press

YPD400 Hydraulic upsetting press

Update time:2017-12-23Number of clicks:863second
The Machine rigidity is bigger. 400T upsetting force. Wide working range. Imported electrical components. Improve the performance of equipment.
Relevant introduction

YPD400 hydraulic upsetting press is widely used in oilfield, construction, bridge and other industries.

It is the preferred equipment to carry out large quantities. It is very suitable for round steel, steel pipe and other long rod.


Highlights:


1.    The rigidity of the main machine is increased, and the upsetting force is 400 ton, the die chamber diameter is 256mm, it makes the working range of the machine beyond other models of  machine;

2.    Double-side locking mechanism is adopted to balance the force on subplate and wedge, the working state is more stable;

3.    High-quality electrical accessories improve the performance of equipment;

4.    The combined quick cylinder is optional; it increases the upsetting extrusion force without losing the upsetting extrusion speed;

5.    It adopts PLC centralized control;

6.    It has 3 modes of operation, adjustment (inching), single (semi-automatic) and linkage (fully automatic);

7.    The working pressure and stroke can be adjusted within the specified range according to the technique requirements.





Technical parameters:


ITEM

UNIT

YPD400

YPD400B

Nominal upset-extruding force

KN

4000

4000

Upset-extruding stroke

mm

800

800

Punch advance speed

mm/s

>157

>190

Upset-extruding speed

mm/s

47

47

Clamping force

KN

5608

5400

Top and bottom die openness

mm

200

180

Die length

mm

900

900

Die outside diameter

mm

Φ256

Φ256

Overall dimension(L×W×H)

mm

3910x3600x2360

3977x2597x2512

Net weight

Kg

21000

19000

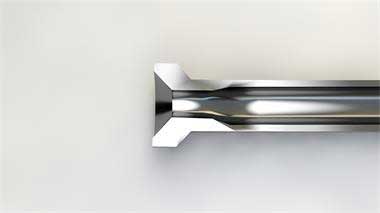

Application:
